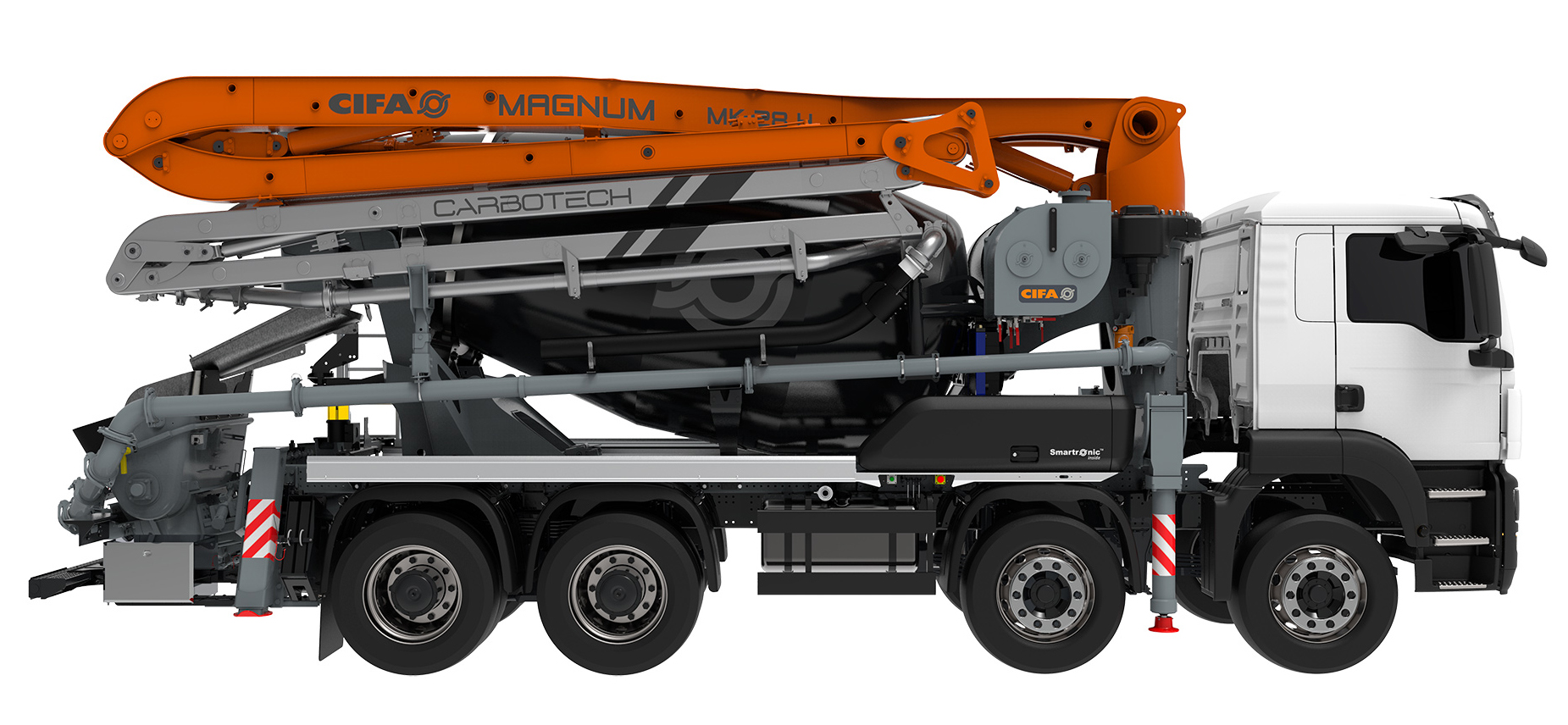

MAGNUM MK28H

Kirjeldus

Lae alla PDF

Distribution boom type MK 28.4 H CARBOTECH
Max. Vertical reach 27.15 m
Max horizontal reach 23.27 m
Mast elements / folding 4 / Z
CARBON SECTIONS 3 and 4
Pipelines 100 mm double-walled
Min. Unfolding height 6.05 m
Swivel range +/- 240 °
Pump unit type PB 607 S7 PB 607 CC EPC
Max. Delivery rate 61 m³ / h 61 m³ / h
Max. Concrete pressure 71 bar 71 bar
Max. Strokes / min. 32 32
Delivery cylinder 200 x 1,000 mm 200 x 1,000 mm
S-pipe size 7 inch 7 inch
Hydraulic circuit open closed
Tax system hydraulically electronically
Drum type RH 80
Nominal filling 7 m³
Geom. Volume 12.8 m³
Degree of filling 55%
Water tank 600 liters
